Drum Crusher

Drum Crusher Benefits:

Reduces Storage Space up to 80%

Save on Transportation Costs

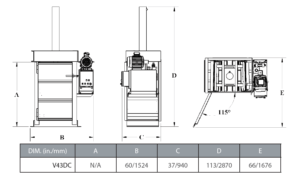

The V43DC (Drum Crusher) is designed to compress a 55 Gallon Drum to 5” high. The machine dimensions are 68” width, 38” depth, and 119” height.

Highlights: • 50,893 lbs. hydraulic force for inside drum compaction/drum crushing

6”Cylinder
Drum Piercing : Punch a hole through the top or all the way through the bottom.
ANSI Z245.5 Compliant – All balers meet our exceed ANSI Z245.5 safety standards
UL/CUL Listed Control Panels
Oil Sight Gauge – Oil level at a glance
Heavy Duty Controls – NEMA 4 rated pushbutton controls with key-lockable start switch

Specifications
Performance
Compact Force lbs – Based on Factory Set (psi)	50,893
Platen Pressure	56 PSI
Average Cycle Time	49 Seconds
Hydraulic / Electrical
Motor HP	10
Voltage 3 Phase Full Load Amps (A = Amps)	208V, 230V, 480V 30A, 28A, 14A
Pump GPM	10.5
Factory Set System Pressure PSI	1800
Cylinder Bore x Stroke	6” x 42”
Hydraulic Tank-Capacity Gallons	22

Available Options:

Explosion-Proof Controls : non-sparking hydraulic or pneumatic control circuits

Alternate Compaction Head – (CH) : Compact waste into the drum with the same machine

Bolt-On Crush Plate- (CP) : For quick change-out between crushing & compacting.

RAM BOTTOM LOCK Control : Keep plastic drums crushed

Air Filtration and Ventilation : Control dust & vapors

Liquid Containment : Control spills or leftover residue

Special Custom Options
